Awareness & Presence Design Document

1. Overview

This document describes the design of Awareness & Presence in a real-time collaborative editor. Awareness & Presence answers four fundamental user questions with minimal cognitive load:

Who is currently in the room?
Where are they in the document?
What are they doing (roughly)?
Will it affect me?

The system is designed to be low-noise, non-blocking, and progressively disclosed. Protocol version: 2 (PRESENCE_PROTOCOL_VERSION in @softmaple/awareness).

2. Design Principles

2.1 Low Interruption by Default

Awareness information should be visible but ignorable
No blocking modals, no toast spam
Strong signals only appear on hover, focus, or potential conflict

2.2 Approximation Over Precision

Presence is probabilistic, not authoritative
“Someone is editing here” is sufficient
Exact keystrokes or real-time character updates are unnecessary

2.3 Layered Awareness

Information is presented in layers from coarse to fine:

Layer	Question Answered
Global	Who is online?
Document	Who is in this document?
Section	Who is editing this part?
Action	What just happened?

3. Non-Goals

The following are explicitly out of scope for the first iteration:

Chat or messaging
Audio / video presence
Detailed activity logs
Real-time keystroke mirroring
Conflict resolution UI (handled at data layer)

4. Presence Model

4.1 Session Identity

interface PresenceUser {
  connectionId: string; // ephemeral per tab / device / socket
  userId: string;       // persistent account identity
  name: string;
  avatarUrl?: string;
  color: string;

  status: PresenceStatus; // derived
  lastActivityAt: number; // real user activity
  lastSeenAt: number;     // heartbeat / any transport frame
  clock: number;          // monotonic per-connection revision

  cursor?: CursorPosition; // offset and/or stable SequenceAnchor
  selection?: PresenceSelection;
  meta?: { isTyping?: boolean };
}

The presence map is keyed by connectionId. The same userId may appear as multiple sessions (multiple tabs). UI may aggregate by userId later.

4.2 Status Rules (derived)

Status is never set by heartbeats. It is derived:

now - lastSeenAt > offlineTimeout  → offline
now - lastActivityAt > idleTimeout → idle
otherwise                          → active

Status	Definition
`active`	Recent user activity (`lastActivityAt`)
`idle`	Connected (seen) but no recent activity
`offline`	Heartbeat / transport liveness expired (`lastSeenAt`)

Heartbeat may only update lastSeenAt. Cursor / selection / typing / markUserActivity update lastActivityAt (and usually lastSeenAt). patchPresenceUser never implicitly bumps timestamps.

4.3 Clocked Updates

Ephemeral presence is a per-connection versioned register:

{ connectionId, clock, updates }

Only incoming.clock > known.clock overwrites state. Stale frames may still refresh lastSeenAt.

4.4 Cursor Positions

type CursorPosition =
  | { blockId: string; offset: number }                 // legacy / textarea
  | { blockId: string; anchor: SequenceAnchor; offset?: number }; // stable

Selections already use stable anchors; cursors should prefer the stable form in EG-walker surfaces.

5. Transport Readiness

WebSocket connect() resolves only when presence is ready, not merely when the socket opens:

disconnected
  → connecting
  → authenticating   (auth → auth_ok; skipped if no authToken)
  → syncing          (join + presence:sync → sync-response)
  → connected        // presence session ready

Heartbeat:

heartbeat { pingId } every ~10s
heartbeat:ack { pingId }
missed ACK deadline (default 20s, 2 misses) → force close → reconnect

6. UI Components

6.1 Document roster and presence primitives

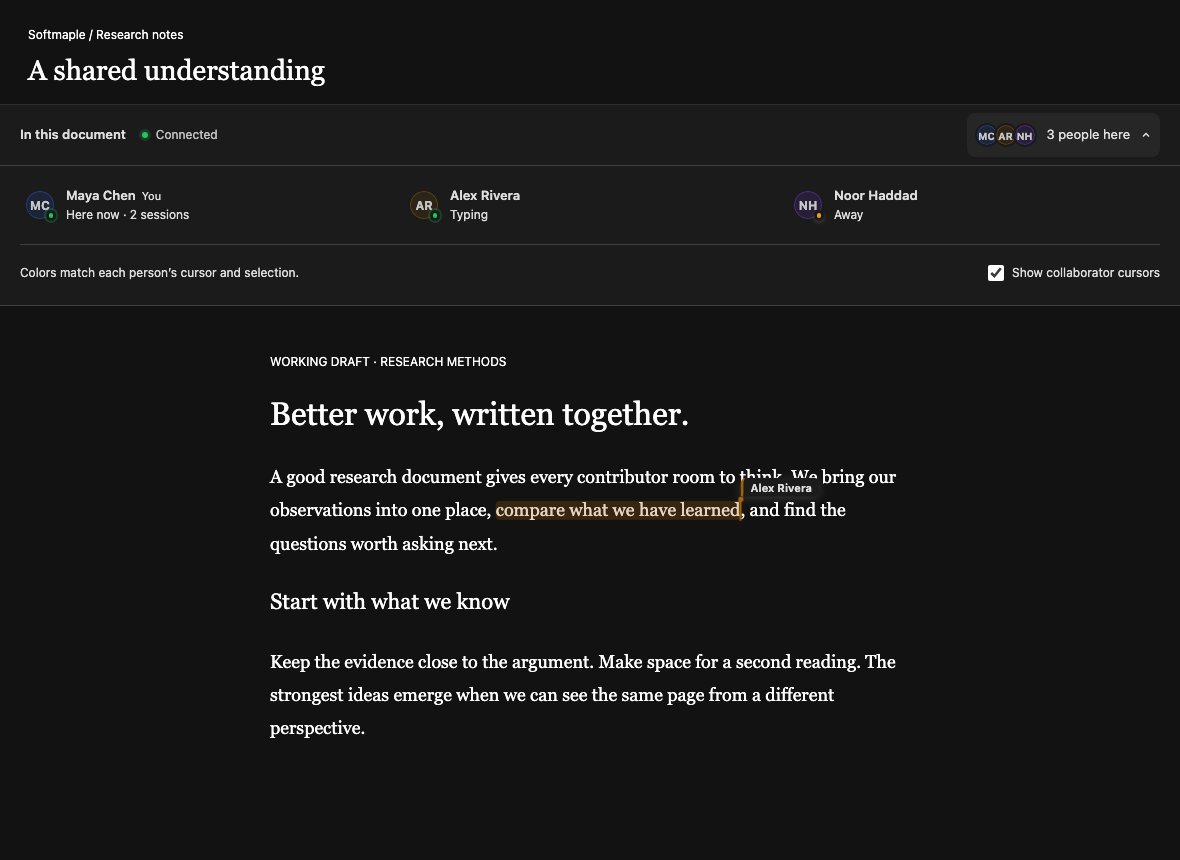

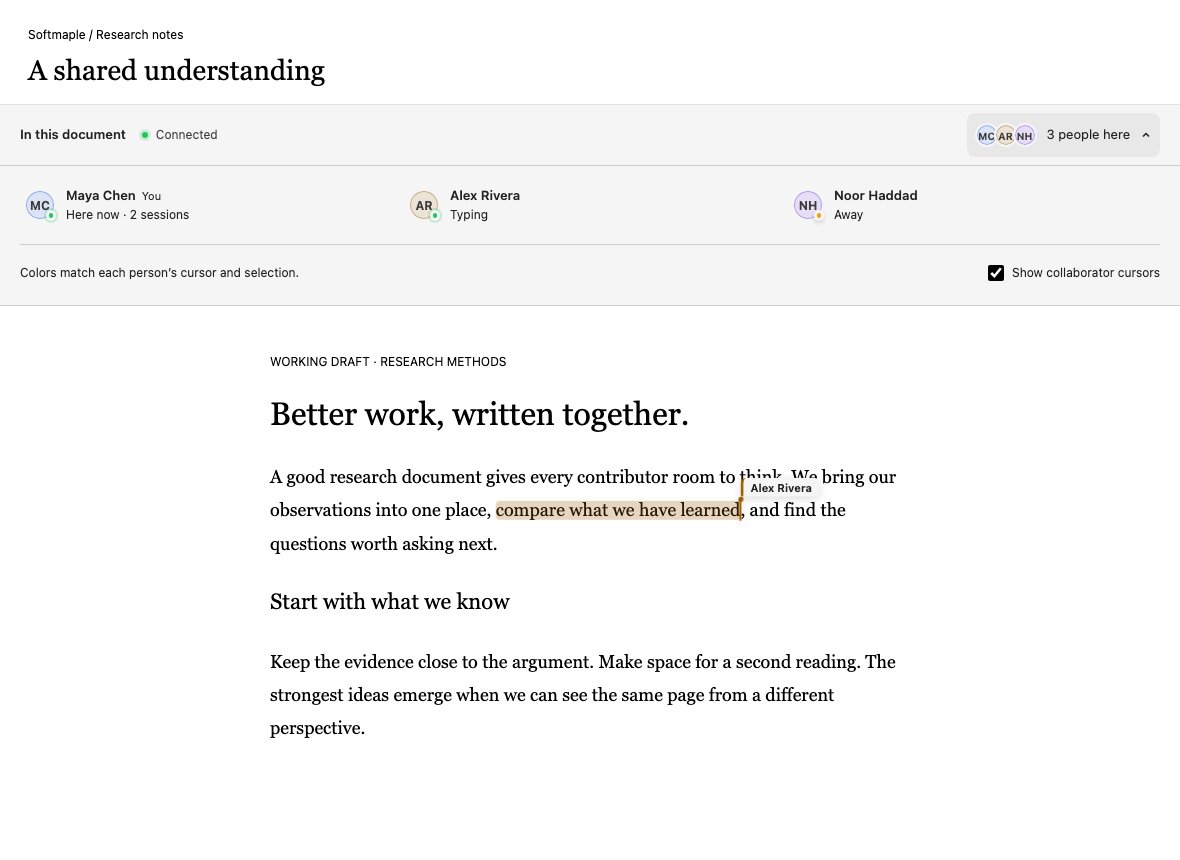

CollaborationBar is the document-level composition used by the web editor. Its compact row names the context, distinguishes presence connection from the header’s document-save state, and opens an inline roster. The expanded panel shows one person per account, live session counts, “You”, and plain activity labels. Self stays first, then names stay in alphabetical order while people type. Offline sessions do not contribute to the count, and connection loss hides the cached roster until presence is ready again. The cursor visibility checkbox changes the local overlay only. It never stops publishing the local selection or changes document editing permissions. The panel uses one button in the tab order; Enter/Space toggle it and Escape inside the panel closes it and returns focus. On small screens, the roster becomes a single column. A scrollable roster bounds the height in crowded rooms. The web editor uses PresenceLayer, LiveCursor, and SelectionHighlight with its measured Lexical geometry. Cursor labels fade, carets match measured line heights, and resizing the editor refreshes positions. Neutral name tags and soft avatar tints retain readable text for pale participant colors; names remain the primary identity when palette colors repeat. Storybook review captures (the document prose is a preview fixture):

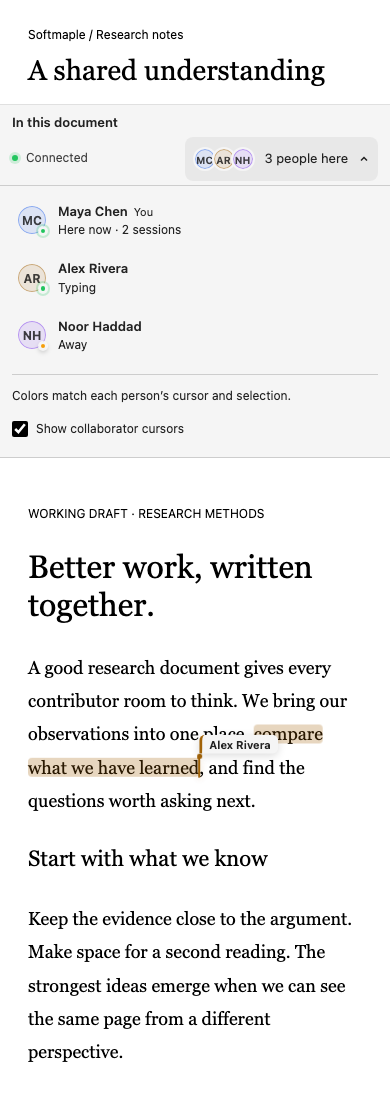

Mobile capture

6.2 Presence Bar (Global Awareness)

Purpose
Shows who is currently in the room. Behavior

Displays up to N avatars
Overflow shown as +X
Tooltip reveals name and status
Sorted by recent activity (lastActivityAt)

6.3 Live Cursor (Local Awareness)

Purpose
Indicates where another user is editing. Behavior

Colored caret
Username label appears on movement
Label fades out after 2-3 seconds
Cursor movement is interpolated (no jitter)

6.4 Selection Highlight (Block Awareness)

Purpose
Shows which block or range is being edited by others.

6.5 Activity Indicator (Action Awareness)

Purpose
Communicates recent activity without distraction.

7. Performance Considerations

Network cursor updates coalesced at 50ms (~20 updates/s/user)
Local rendering may still run at 60fps independently
When WebSocket bufferedAmount is high, stale cursor frames are dropped (latest-value-wins)
Off-screen cursors not rendered
Presence is eventually consistent

8. Accessibility

Non-blocking indicators
Screen reader friendly
Color is never the sole signal

9. Architecture

                 PresenceStore / core
                /                    \
        Transport Adapter              React Provider
        (WS / BroadcastChannel)        (hooks / UI)

Adapters own connect / send / receive / reconnect. Status derivation and clocked merges live in packages/awareness/src/core/.

10. Success Criteria

Users feel confident editing together
Idle is reachable while heartbeats continue
Multi-tab same account does not self-suppress
Minimal performance impact under multi-user cursor load

11. Summary

Awareness & Presence should create calm confidence, not excitement.

“I know who’s here, and I’m not surprised by their actions.”
